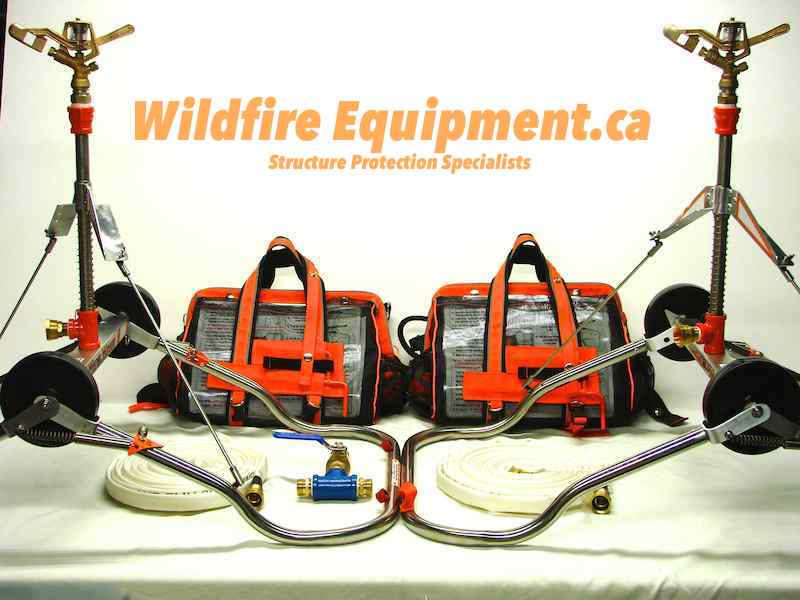

Two Water Winger rooftop sprinkler kits with deployment lines and storage bags
Premium ground spike sprinkler with 1/2" adjustable RainBird impact sprinkler and 3 heavy duty powder coated spikes
Compact wildfire ground spike sprinkler with brass impact head and metal spike base
Wildfire structure protection hose and sprinkler fitting assemblies
One-and-a-half-inch poly Y fitting with garden-hose adapters for sprinkler branches
Three-quarter-inch high-flow Y splitter for two wildfire sprinkler hose branches
Three-quarter-inch outside-loop T fitting for a wildfire ground sprinkler branch
Three-quarter-inch inside-loop T fitting for a Water Winger rooftop sprinkler branch

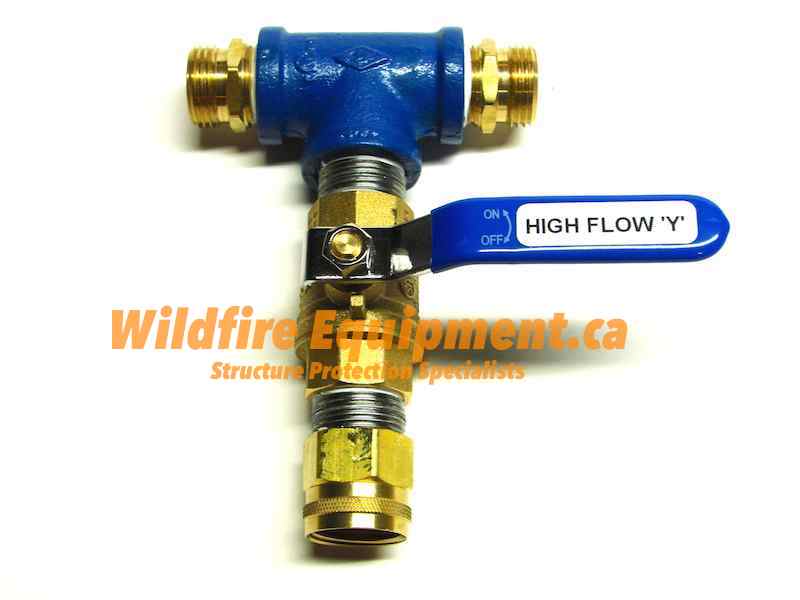

Three-quarter-inch high-flow Y fitting with one main valve for two Water Winger sprinklers
50-foot 3/4-inch wildfire sprinkler hose with garden-hose fittings
Fifty-foot yellow lay-flat fire hose included with the Water Winger rooftop sprinkler kit
Two Water Winger rooftop sprinklers positioned at opposite ends of a roof for structure protection coverage

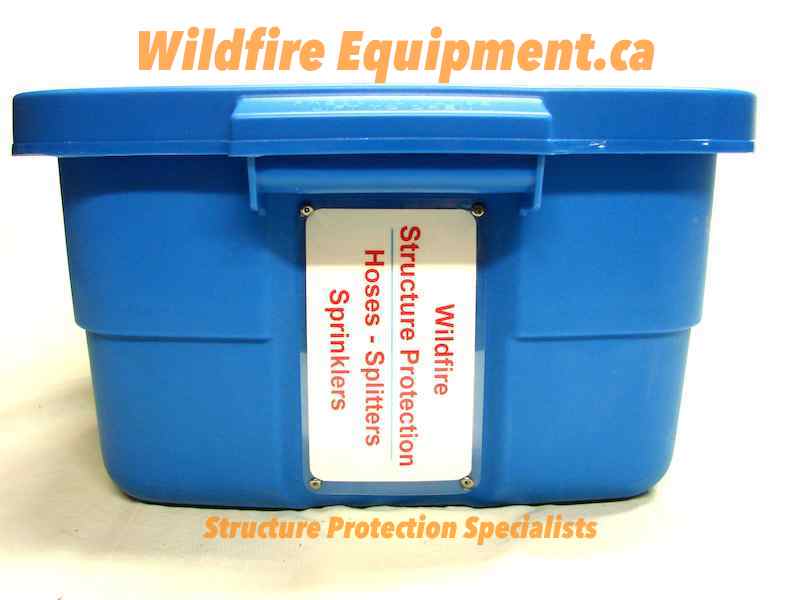

Portable storage container packed with wildfire structure protection equipment
Recommended Water Winger rooftop sprinkler positions for larger homes

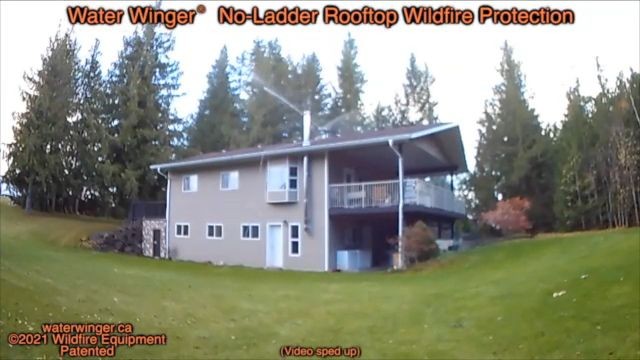

Water Winger rooftop sprinkler structure protection demonstration video
Water Winger sprinkler operating on a barn roof during a wildfire protection demonstration
Complete Water Winger rooftop wildfire sprinkler kit with hose, launcher, storage bag and accessories

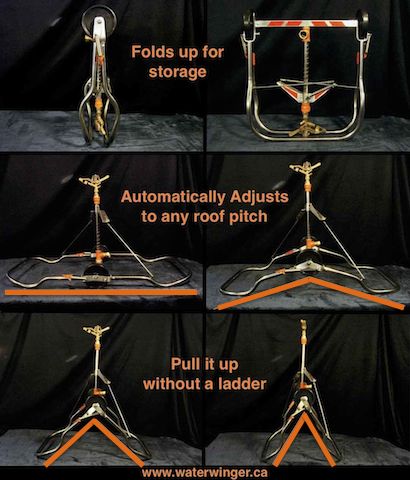

Water Winger rooftop sprinkler kit folded for compact storage and rapid deployment

Large Home Structure Protection System – Level 2

$3,799.00 CDN

Expanded package with two Water Winger rooftop sprinklers, ground sprinklers, hose and fittings for larger homes and wider coverage.

Level 2 package contents

What’s Included

Sprinklers

  • 2 Water Winger rooftop kits with standard 100-foot deployment line sets
  • Included Water Winger nozzle sets — one per kit: 3/16-inch main nozzle, additional 5/32-inch main nozzle for lower water supplies, 3/32-inch spreader nozzle and nozzle plug
  • 2 half-inch Rain Bird ground spike sprinklers
  • 2 small ground spike sprinklers

Hose

  • 5 × 3/4-inch × 50-foot yellow hose for the 250-foot main loop
  • 7 × 5/8-inch × 50-foot yellow hose for sprinklers and the hand line

Flow control

  • 1 1.5-inch forestry loop-start connector for the water-supply feed
  • 5 high-flow branch tees
  • 1 3/4-inch high-flow loop-start tee
  • 2 heavy-duty brass GHT wyes
  • 1 adjustable brass Mini Sweeper fire nozzle

Storage and guidance

  • 2 labelled storage totes
  • 2 durable layout cards and inventory lists
SKU: L2100 Category:

Description

Level 2 complete system

Expanded full-loop protection for larger properties

Run two Water Winger rooftop sprinklers and four adjustable ground sprinklers around a large home, or divide the coverage between a home and a nearby structure. The full-loop layout gives every sprinkler a controlled branch, and the system arrives packed for organized storage and deployment.

6 sprinklers2 rooftop + 4 ground
32–36 US GPMcombined system demand
50 PSIplanning pressure at the sprinklers
250 ftincluded 3/4-inch main loop

Check each deployment path

Confirm the line length for both Water Wingers

Each Water Winger includes its standard 100-foot deployment line set. Measure the complete route from the ground, up and over each structure, to confirm that the included lines will reach the intended roof peaks.

If either route requires a longer line set, contact us before ordering and we will help confirm the appropriate length.

Diagram showing the measurements used to determine the Water Winger deployment line length

Typical Level 2 layout

Plan the full loop before deployment

The supplied 3/4-inch hose builds a 250-foot main loop around the structure. Measure from the loop-start connection all the way around the property; add more 50-foot main-line hose if the route exceeds 250 feet.

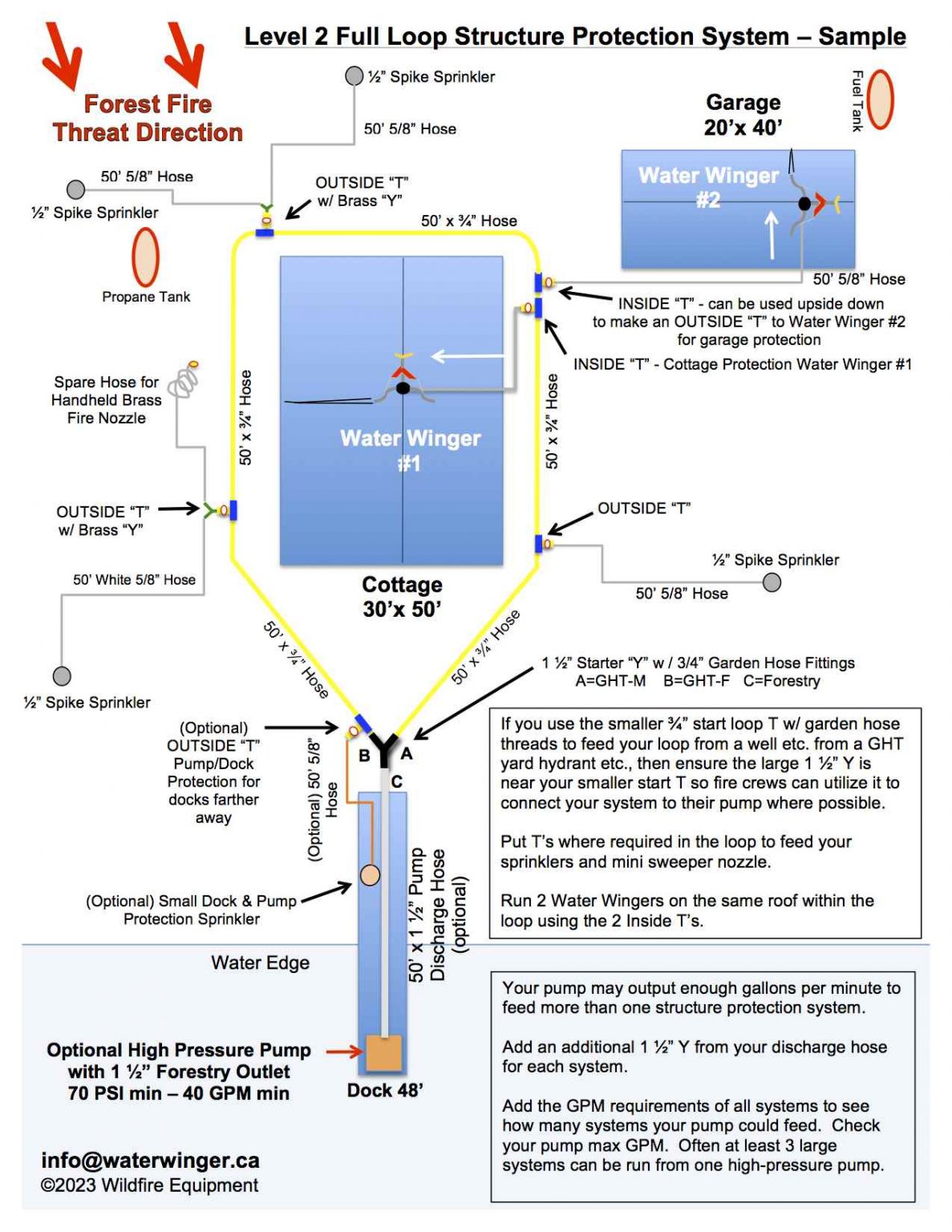

Sample Level 2 structure-protection layout with two rooftop sprinklers and four ground sprinklers

Water-supply planning

Confirm pressure and flow before relying on the system

Standard planning target

  • 32–36 US GPM combinedPlanning flow for the complete six-sprinkler configuration shown.
  • 50 PSI at the sprinklersConfirm the available pressure after feeder hose, loop hose, fittings and elevation losses.
  • 5–9 US GPM per Water WingerThe included 3/16-inch and lower-flow 5/32-inch main nozzles help match different water supplies.
  • Included nozzle setsEach Water Winger includes 3/16-inch and 5/32-inch main nozzles, a 3/32-inch spreader nozzle and a nozzle plug.

If the supply is limited

  • Confirm the source equipmentThe pump and feeder hose are selected separately and must supply the required flow at sufficient pressure after all system losses.
  • Use the included loop-start connectionThe 1.5-inch forestry connector feeds the 3/4-inch full loop from a suitable pump, irrigation supply or well system.
  • Use the lower-flow nozzlesThe included 5/32-inch main nozzles can help match a lower-capacity water supply.
  • Run sprinklers in zones if neededIf the supply cannot operate all six sprinklers together, divide the system into zones and run only the number the supply can support at one time.

Built for long-term readiness

High-flow components, clearly organized

Large-bore valves and fittings are pre-built to reduce unnecessary restriction and powder coated blue for visibility. Hoses and fittings are packed in two labelled storage totes with inventory and layout guidance, while each Water Winger remains organized in its own kit and is backed by a five-year limited warranty.

Coverage and planning figures are estimates. Actual performance varies with the water source, hose length, elevation, fittings, equipment condition, nozzle selection, wind, roof geometry, terrain, obstructions and overlap between sprinklers. Flow-test the complete layout before relying on it.

Additional information

Weight 95 lbs
